Page 1

Photo 1

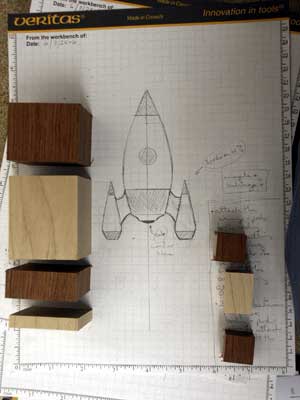

The whole process starts with a design. I prefer graph paper to plain to work out the proportion and dimensions. Then I choose wood species appropriate to the design. The design may change as the rocket is built, but it’s still essential to have something to start from.
In this case, I chose maple (light sections) and bubinga (dark sections) as the species for the rocket components.

Photo 2

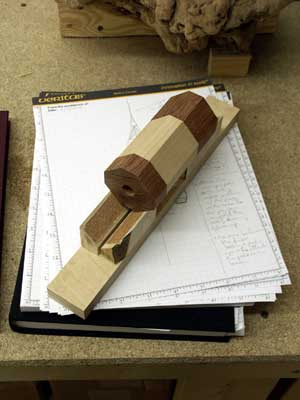

Once glued up, I prep the rocket body blank. Using a sled-like jig to support the blank, I cut the corners off on a bandsaw to save turning time. The ½” diameter hole in the base of the rocket body blank will hold a decorative piece later on, but, for now, it helps to hold the rocket body blank on the lathe.
